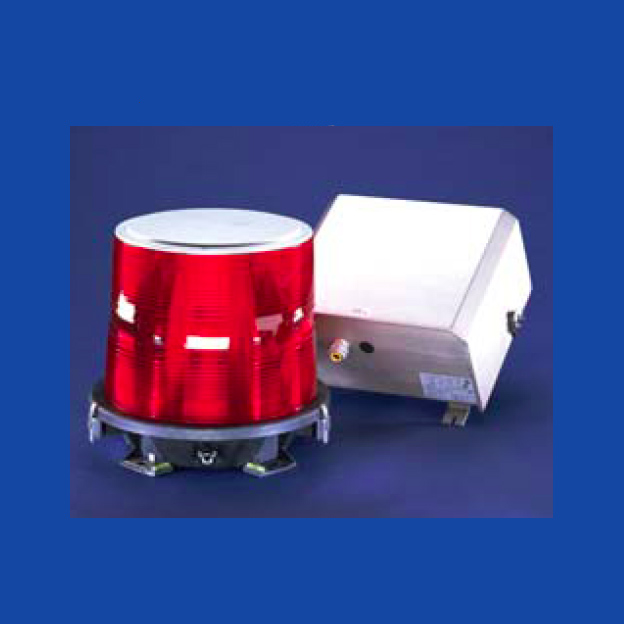

RED MEDIUM INTENSITY FLASHHEAD WITH CHC121W CONTROLLER
|
|
|
| Voltage | Catalog Number |
|---|---|
| 220/240V 50Hz | CHB302R 220/240V 50Hz |
| 110/120V 60Hz | CHB302R 110/120V 60Hz |
| * Note: Obstructions over 350 feet require several interconnected power converters and flashheads (typically three) in a master/slave configuration. Contact Cooper Crouse-Hinds customer service for assistance. | |
APPLICATION:
- The CHB302R is a medium intensity red beacon for use with high intensity systems and designed to work with the CHC121W Controller. It will provide a red beacon for night operations for structures up to 500'.
- Complete technical data and application assistance available.
Certified to:
-
FAA AC 150/5345-43F: L-864
Compliant to:
- FCC Rules and Regulations
- Canadian Standards Association (CSA)
- ICAO (Annex 14)
- Type B (red)
FEATURES/BENEFITS:
- FAA approved L-864
- Meets or exceeds ICAO specifications
- Power consumption is 90% less than conventional incandescent beacons
- Low operating and maintenance costs with long life flashtubes
- NEMA 4X stainless steel enclosure
- Special circuitry eliminates the lens failure due to ozone corrosion common to all other beacons
- Horizontal 360 degree and vertical 5 degree beam spread
- Very narrow, controlled beam
- Smallest size and wind loading
- AC or DC operation available
- Remote alarm indication
- Complete technical data and application assistance available
