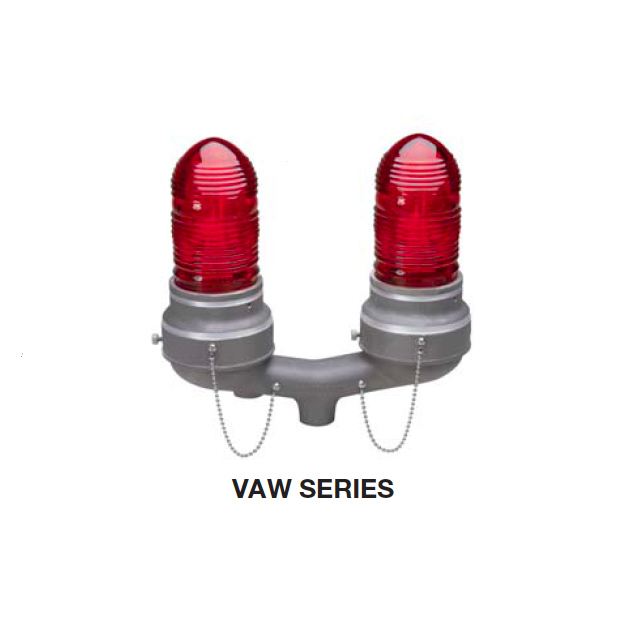

L810 - VAW Series - Incandescent (Obstruction Light)

Datasheet:
If necessary, use the Datasheet to fill in any additional part numbers or extra info.
CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.





APPLICATION:

The VAW Series incandescent obstruction light is used for nighttime obstruction marking of tall structures that may present hazards to air navigation. The VAW is designed for steady burning applications.

Compliant to:

  • US Military Specification MIL-L-7830
  • USAF ANA Standards
  • FCC Rules and Regulations
  • Canadian Standards Association (CSA)
  • ICAO (Annex 14)
  • Low Intensity Type A or Type B
  • Canadian Aviation Regulation/span>
  • CAR 621.9 (Transport Canada)

FEATURES/BENEFITS:

  • Compliant to US Military Specification MIL-L-7830 as well as USAF ANA Standards
  • Red fresnel glass globes for 360° visibility
  • Threaded bottom 1" hub for mounting
  • Cast aluminum housing with natural finish
  • Threaded globes
  • Accepts traffic signal lamps with USA medium screw base and European E27 base
  • Operates on 120 or 220-240V and 60 or 50Hz frequency power supply when used with proper voltage lamp
  • Gasket for globe seal
  • Lamp Life 8000 hours at 120V and 4000 hours for 220-240V applications
  • Optional wire guards (-GG option)
