Applications:
The PAPI System provides the pilot a positive visual indication of the aircraft’s position relative to the optimal glide slope during final approach to the runway.

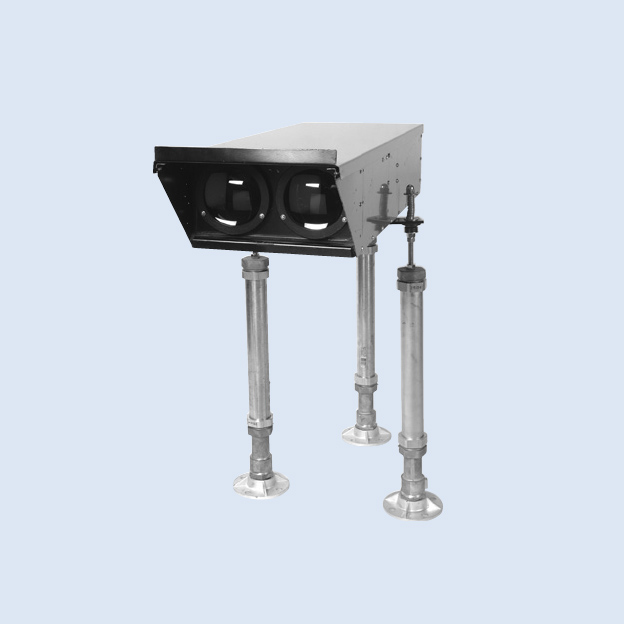

The L-880 PAPI system consists of four units in a line or bar, each unit having two or three 200 watt lamps. The PAPI unit produces a beam of light, the upper portion being white, the lower red. As the pilot’s vertical position changes, the color of the light as seen by the pilot changes instantaneously.
The Style A PAPI uses a Power and Control Unit (PCU) which has a photocell for automatic day/ night intensity control. The PCU can be operated by using an L-854 radio controller signaled by an approaching aircraft. The Style B PAPI is powered by an L-828 constant current regulator.
Compliances:
- FAA AC 150/5345-28: L-880 and L-881
- ICAO Annex 14
Features:
PAPI UNIT
- ETL Certified
- 1000 Hour Lamps
- Meets ICAO Recommendations
- Sharp Signal Transition: less than 3 Minutes of Arc
- Precise Setting Tool: ±2 Minutes of Arc
- Lamp Bypass Circuit (Style B)
- Tilt Switch Indicator Lights (Style B)
POWER AND CONTROL UNIT(PCU)
(Style A)
- Power Circuit Breaker
- Adjustable Power Supply - 195 to 265 VAC
- 50 Hz or 60 Hz Operation
- Indicator Lights:
Internal D.C. Power Supply Operation
Remote Control Status
Tilt Switch Status
Lamp Circuit Overvoltage
Photocell Status
Main Contactor Status
High Intensity ModeRemote Control Override
