Datasheet:

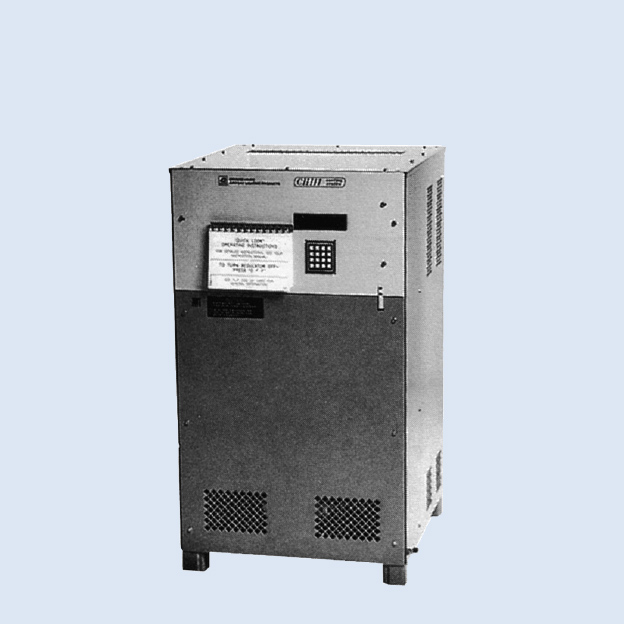

Constant Current Regulators-Dry
Small/4-10kW Unit
Applications:
The REGD Constant Current Regulator is designed to provide precision control of runway lighting circuits. The equipment can be supplied with a wide range of control and monitoring options. These regulators are air cooled and designed for indoor service.
Compliances:
- FAA AC 150/5345-10: L-828 and L-829
- ICAO Aerodrome Design Manual, Part 5
- USN NAVAIR 51-50AAA-2
Features:
- ETL Certified
- Air cooled
- Advanced Diagnostic Aids
- Series transformer type regulator
- Elapsed Time Indicator: each step and total
- Built-in digital ammeter (0.5% accuracy)
- Regulation ±1% over 0 to 100% load and +10% to -5% line voltage with no tap changes
- On-off switching under load
- Lightning and transient protection: input and output lines
- Efficiency – 90% minimum
- High power factor**
- Remote reset capability
- Output current maintained with 30% open isolation transformer secondaries
- Open circuit protection
- Over current protection
- Compatibility of Multiple Options
- Soft On/Off
- Integral L-829 Monitoring
- 10,000 feet remote control @ 120V
- Temperature – 40°C to +55°C
- Plug-in printed circuit boards
- Circuit board compatibility with large dry CCR***
