Datasheet:
Applications

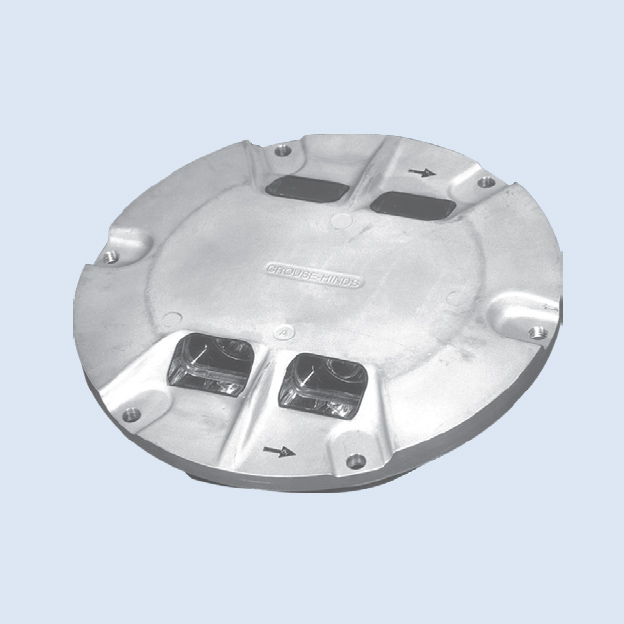

The IREL is a high intensity bidirectional light (using four 48 watt lamps.) This fixture is used where taxiways intersect the runway and any other runway edge locations where it is impractical to use an elevated light.
Compliances:
- FAA AC 150/5345-46: L-850C
-
ICAO Annex 14: Fig. A2-9
-
UFC 3-535-01
Features
- ETL Certified
- Low profile, < .25” (6mm) – FAA Style 3
- Low Power Consumption
- Few Parts to Stock
- Beam Orientation can be easily changed to left or right toe-in
- Easy to maintain – no sealant required for prism or feed-through assembly replacement
- Pressure test plug for seal integrity verification
- Long Lamp Life – Quartz Halogen, 48 W, 6.6A
- High-strength forged aluminum
