Datasheet:

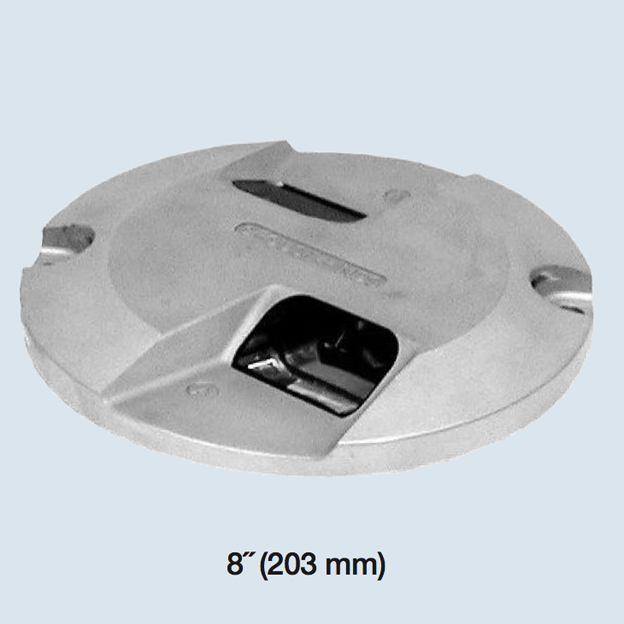

Runway Centerline Light, Touchdown
Zone Light or Rapid Exit Taxiway
Indicator Light – ICAO
Applications
The RCLI/TDZI light does triple duty as a runway centerline light, a touchdown zone light, or as a rapid exit taxiway light. The RCLI is a bidirectional light, typically clear/clear or clear/red, with two 48 W lamps. The TDZI is a clear unidirectional light, with a 48 W lamp. RCLI /TDZI may be used for any category ICAO, or military runway.
Compliances:
- ICAO Annex 14: Fig. A2-5, A2-6 and A2-7
- Transport Canada Specification K 271: Fig B5 and B8
Features
- ETL Tested and Verified (photo and color)
- Low Profile, < .25” (6mm) – FAA Style 3
- Low Power Consumption
- Few Parts to Stock
- Beam Orientation can be easily changed to left or right toe-in
- Easy to maintain – no sealant required for prism or feed-through assembly replacement
- Pressure test plug for seal integrity verification
- Long Lamp Life – Quartz Halogen, 48 W
- High-strength forged aluminum
- External ground screw
- Shallow Base
