Datasheet:
No longer available for new installations, use IRTEL.
Applications

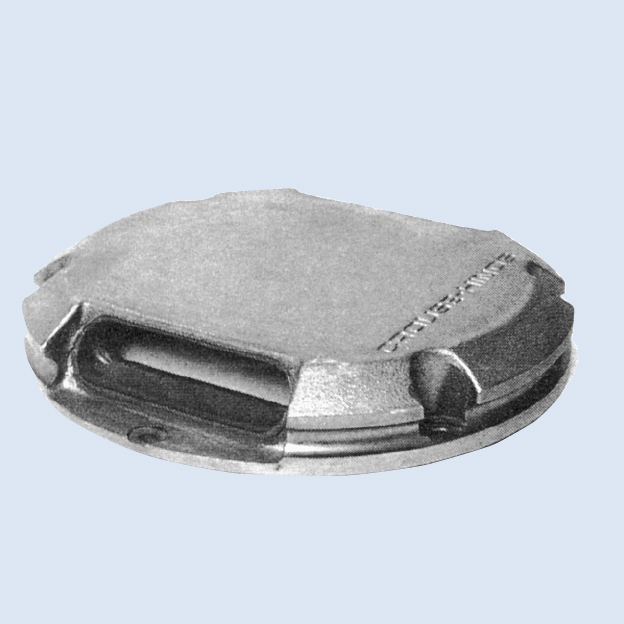

The RTEL is a high intensity bidirectional light used on runways where the threshold and end lighting are co-located. The green threshold light’s main beam may be straight or toed-in 3.5 degrees. The red runway end light has a straight beam. The two lamps are typically connected to separate circuits with the red side operated by the runway edge lighting circuit.
Compliances:
- FAA AC 150/5345-46: L-850D
- ICAO Annex 14
- UFC 3-535-01
Features
- FAA Approved L-850D
- Proven reliability
- Variety of mounting methods
- Optional high-strength casting approximately double the tensile strength of ductile iron
- Optional metallic-ceramic coating for increased corrosion resistance
