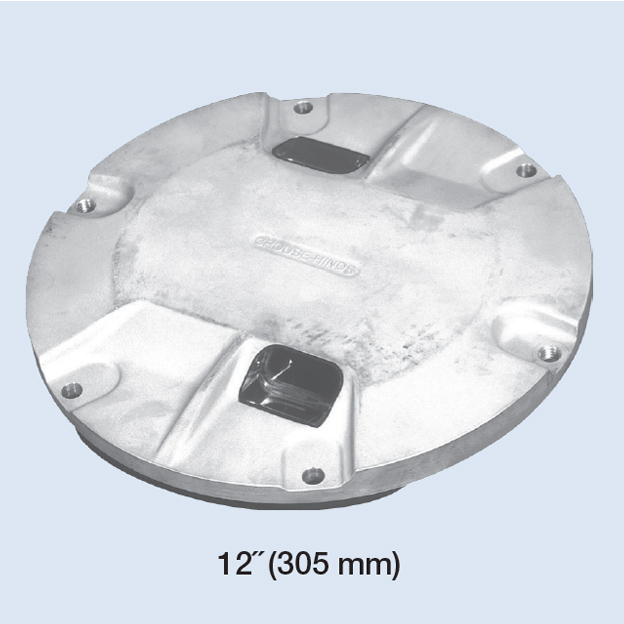

Datasheet:
Runway Centerline Light, Touchdown
Zone Light or Rapid Exit Taxiway
Indicator Light
Applications
The RCLI/TDZI light is a multi-use fixture for use as a runway centerline, touchdown zone and rapid exit taxiway light. The RCLI is a unidirectional and bidirectional light; typically clear/clear or clear/red, with two 48W lamps. When used as a rapid exit taxiway light it uses one 48W lamp in a green/blank configuration. The TDZI is a clear unidirectional light, with one 48W lamp. The RCLI/TDZI may be used on any ICAO airfield.
Compliances:
-
ICAO Annex 14: Fig. 2.5, 2.6 and 2.7
Features
- Low Profile, < .25 ̋ (6mm) – FAA Style 3
- High-strength aluminum optical assembly
- Low Power Consumption
- Few Parts to Stock
- Beam Orientation can be easily changed to left or right toe-in
- Easy to maintain – no sealant required for prism or feed-through assembly replacement
- Pressure test plug for seal integrity verification
- Long Lamp Life – Quartz Halogen, 48 W
