Datasheet:

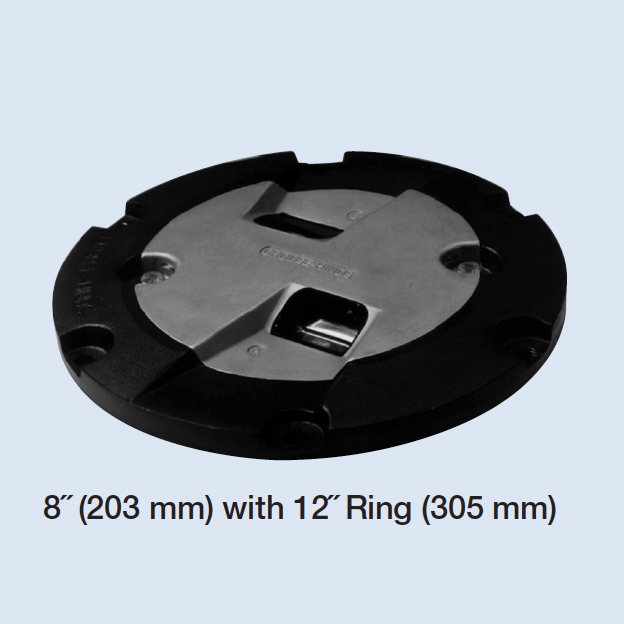

Taxiway Centerline Light-LED - 8"
Applications
The TCL LED 8 ̋ is a taxiway centerline light that is used primarily as a ground traffic aid during periods of low visibility to guide aircraft between the runway and the parking stand. The TCL LED 8 ̋ is often a bidirectional light, but it also may be a unidirectional light on certain taxiways, such as high speed turnoffs.
Compliances:
- FAA AC 150/5345-46
- FAA Engineering Brief 67
- UFC 3-535-01
Features
- ETL Certified
- Low profile, < .25 ̋ (6 mm) – FAA Style 3
- Unique combination of high-strength aluminum optical assembly and ductile iron outer ring for snow plow protection
- Few parts to stock
- Easy to maintain – no sealant required for prism or feed-through assembly replacement
- Pressure test plug for seal integrity verification
- Long life LED
- Direct Replacement on existing circuit
- Complies with intensity curve requirements for 3-step and 5-step circuits, 50/60 Hz
